PTIC0030 | Celduc Relais
Proximity switch, plastic, built-in mounting M8, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, PTIC0030
Order No.: 45P4625
EAN: 3760283304468
MPN:
PTIC0030
Unit Price (€ / pc.)
24.6211 € *
Standard delivery time from the manufacturer is: 15 Weeks

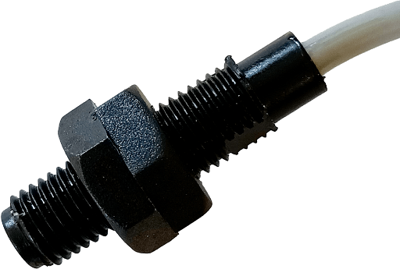

Magnetic proximity sensor, PTIC0030, Celduc Relais
Magnetic proximity sensor with REED switch and 1 contact changeover.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 5 W | |
| Switching Voltage (DC) | 175 V | |
| Connection | cable connection | |
| Degree of protection (IP) | IP67 | |
| Latching switching function | 1 Form C (NO/NC) | |
| diameter | 6.5 mm | |
| switching current | 0.25 A | |
| Assembly | built-in mounting M8 | |
| Switching Voltage (AC) | 110 V | |
| Detecting distance | 12 mm | |
| Version | plastic | |
| Product type | proximity sensor | |
| Length | 31.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
