PTA90160 | Celduc Relais

Proximity switch, brass, built-in mounting M10, 1 Form A (N/O), 10 W, 100 V (DC), 0.4 A, PTA90160

Order No.: 45P4599
EAN: 3760283304581
MPN:
PTA90160
Series: PTA
PTA90160 Celduc Relais Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
36.771 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
367.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
36.771 €

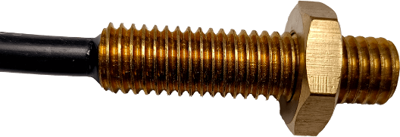

Magnetic proximity sensor, PTA90160, Celduc Relais

Magnetic proximity sensor with 1 normally open contact.

Technical specifications
Filter Property Value
Switching Voltage (AC) 48 V
Detecting distance 12 mm
Contact resistance 150 mΩ
Degree of protection (IP) IP67
Breaking capacity 10 W
Assembly built-in mounting M10
switching current 0.4 A
Length 40 mm
Product type proximity sensor
Version brass
Switching Voltage (DC) 100 V
Connection cable connection
Latching switching function 1 Form A (N/O)
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
