PTA50010 | Celduc Relais
Proximity switch, plastic, 1 Form A (N/O), 7 W, 100 V (DC), 0.4 A, PTA50010
Unit Price (€ / pc.)
11.4121 € *
Available in 5 Days: 2,908 pcs. - if ordered today

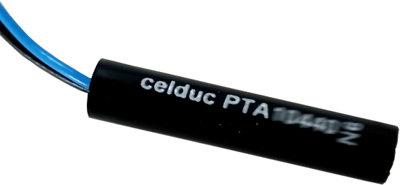

Magnetic proximity sensor, PTA50010, Celduc Relais
Magnetic proximity sensor with 1 normally open contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact resistance | 150 mΩ | |
| Breaking capacity | 7 W | |
| Switching Voltage (DC) | 100 V | |
| Connection | stranded wires | |
| Degree of protection (IP) | IP67 | |
| Latching switching function | 1 Form A (N/O) | |
| diameter | 6 mm | |
| switching current | 0.4 A | |
| Switching Voltage (AC) | 48 V | |
| Detecting distance | 18 mm | |
| Version | plastic | |
| Product type | proximity sensor | |
| Length | 25.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
