PSA60015 | Celduc Relais

Proximity switch, plastic, screw mounting, 1 Form A (N/O), 800 W, 2 A, PSA60015

Order No.: 45P4576
EAN: 3760283304840
MPN:
PSA60015
Series: PSA
PSA60015 Celduc Relais Proximity Switches, Reed switches

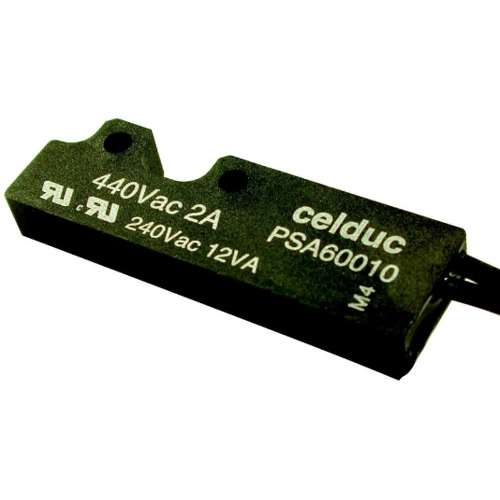

Image may differ
Unit Price (€ / pc.)
46.5052 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2,325.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
46.5052 €

Magnetic safety sensor, PSA60015, Celduc Relais

The PSA60015 is a magnetic safety sensor without coding has been designed to meet the security requirements for machines presenting "low danger". With an output power up to 2A 440VAC with integrated voltage protection, this sensors can directly drive a power contactor.

Technical specifications
Filter Property Value
Assembly screw mounting
Version plastic
Product type proximity sensor
Degree of protection (IP) IP67
Latching switching function 1 Form A (N/O)
Detecting distance 12 mm
Switching Voltage (AC) 440 V
switching current 2 A
Connection cable connection
Breaking capacity 800 W
Length 51 mm
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
