PSA60010 | Celduc Relais

Proximity switch, plastic, screw mounting, 1 Form A (N/O), 800 W, 2 A, PSA60010

Order No.: 45P4575
EAN: 3760283304857
MPN:
PSA60010
Series: PSA
PSA60010 Celduc Relais Proximity Switches, Reed switches
Image may differ

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
43.1018 € *
Available in 5 Days: 537 pcs. - if ordered today
Total Price:
862.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
43.1018 €

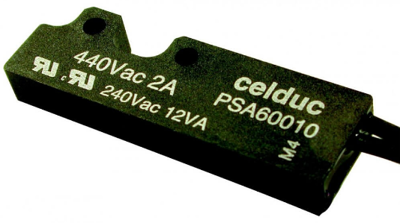

Magnetic safety sensor, PSA60010, Celduc Relais

The PSA60010 is a magnetic safety sensor without coding has been designed to meet the security requirements for machines presenting "low danger". With an output power up to 2A 440VAC with integrated voltage protection, this sensors can directly drive a power contactor.

Technical specifications
Filter Property Value
Product type proximity sensor
Version plastic
Latching switching function 1 Form A (N/O)
Breaking capacity 800 W
Switching Voltage (AC) 440 V
switching current 2 A
Detecting distance 30 mm
Assembly screw mounting
Connection stranded wires
Degree of protection (IP) IP67
Length 51 mm
Logistics
Property Value
Customs tariff number 85365080
Country of origin FR
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
