PMG12921 | Celduc Relais
Proximity switch, plastic, built-in mounting M14, 1 Form A (N/O), 100 W, 230 V (DC), 3 A, PMG12921
Unit Price (€ / pc.)
36.652 € *
Standard delivery time from the manufacturer is: 15 Weeks

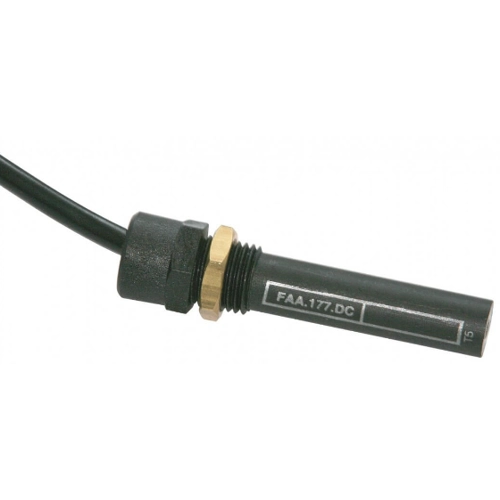

Magnetic proximity sensor, PMG12921, Celduc Relais
Magnetic proximity sensor with 1 normally open contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | proximity sensor | |
| Version | plastic | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 100 W | |
| Switching Voltage (DC) | 230 V | |
| switching current | 3 A | |
| Contact resistance | 150 mΩ | |
| Detecting distance | 17-27 mm | |
| Assembly | built-in mounting M14 | |
| Connection | cable connection | |
| Degree of protection (IP) | IP65 | |
| diameter | 9 mm | |
| Length | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
