PHC13700 | Celduc Relais
Reed switche, plastic, PCB mounting, 1 Form C (NO/NC), 3 W, 100 V (DC), 0.25 A, PHC13700
Order No.: 45P4549
EAN: 3760283305038
MPN:
PHC13700
Unit Price (€ / pc.)
8.1872 € *
Available in 5 Days: 1,197 pcs. - if ordered today

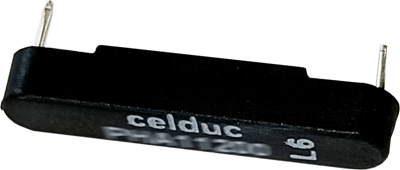

Magnetic proximity sensor, PHC13700, Celduc Relais
Magnetic proximity sensor with 1 contact changeover.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact resistance | 150 mΩ | |
| Breaking capacity | 3 W | |
| Switching Voltage (DC) | 100 V | |
| Connection | PCB pin | |
| Degree of protection (IP) | IP67 | |
| Latching switching function | 1 Form C (NO/NC) | |
| switching current | 0.25 A | |
| Assembly | PCB mounting | |
| Detecting distance | 11 mm | |
| Version | plastic | |
| Product type | reed sensor | |
| Length | 23.12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
