PHA11200 | Celduc Relais
Reed switche, plastic, PCB mounting, 1 Form A (N/O), 10 W, 100 V (DC), 0.4 A, PHA11200
Order No.: 45P4548
EAN: 3760283305045
MPN:
PHA11200
Unit Price (€ / pc.)
7.3066 € *
Available in 5 Days: 2,259 pcs. - if ordered today

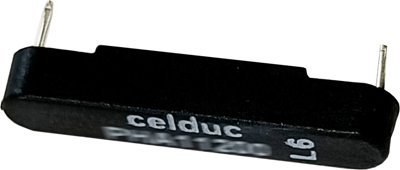

Magnetic proximity sensor, PHA11200, Celduc Relais
Magnetic proximity sensor with normally open contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reed sensor | |
| Version | plastic | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 100 V | |
| Switching Voltage (AC) | 48 V | |
| switching current | 0.4 A | |
| Contact resistance | 100 mΩ | |
| Detecting distance | 17 mm | |
| Assembly | PCB mounting | |
| Connection | PCB pin | |
| Degree of protection (IP) | IP67 | |
| Length | 23.12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
