PDC20030 | Celduc Relais
Proximity switch, plastic, built-in mounting M10, 1 Form C (NO/NC), 60 W, 1 A, PDC20030
Order No.: 45P4543
EAN: 3760283304192
MPN:
PDC20030
Unit Price (€ / pc.)
30.345 € *
Standard delivery time from the manufacturer is: 15 Weeks

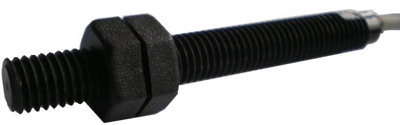

Magnetic proximity sensor, PDC20030, Celduc Relais
Magnetic proximity sensor with REED switch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact resistance | 150 mΩ | |
| Breaking capacity | 60 W | |
| Connection | cable connection | |
| Degree of protection (IP) | IP67 | |
| Latching switching function | 1 Form C (NO/NC) | |
| diameter | 7.9 mm | |
| switching current | 1 A | |
| Assembly | built-in mounting M10 | |
| Switching Voltage (AC) | 250 V | |
| Detecting distance | 20-50 mm | |
| Version | plastic | |
| Product type | proximity sensor | |
| Length | 85.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
