PCA36720 | Celduc Relais
Proximity switch, plastic, built-in mounting M12, 1 Form A (N/O), 120 W, 250 V (DC), 3 A, PCA36720
Unit Price (€ / pc.)
27.1677 € *
Available in 5 Days: 108 pcs. - if ordered today

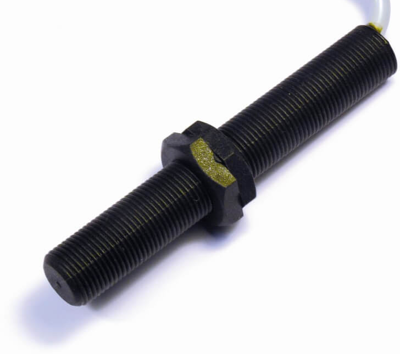

Magnetic proximity sensor, PCA36720, Celduc Relais
Magnetic proximity sensor with REED switch and 1 normally open contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | proximity sensor | |
| Version | plastic | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 120 W | |
| Switching Voltage (DC) | 250 V | |
| Switching Voltage (AC) | 250 V | |
| switching current | 3 A | |
| Contact resistance | 80 mΩ | |
| Detecting distance | 15-40 mm | |
| Assembly | built-in mounting M12 | |
| Connection | cable connection | |
| Degree of protection (IP) | IP67 | |
| Length | 80 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
