ECOM0010 | Celduc Relais
Temperature controller, 24 VA, 0 to 45 °C, blue/black, ECOM0010
Order No.: 45P4510
EAN: 3760283307650
MPN:
ECOM0010
Unit Price (€ / pc.)
210.0588 € *
Available in 5 Days: 373 pcs. - if ordered today

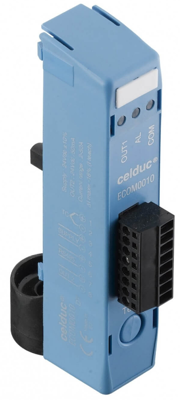

Temperature controller, ECOM0010, Celduc Relais
The ECOM0010 is a temperature controller with insulated thermocouple input, loop and heater break alarms, heating and cooling PID with autotuning. The control accuracy can fit the requirements of various application fields like extrusion or injection plastic moulding, packaging, drying ovens, glass tempering furnaces, semiconductor industry ovens and dryers, reflow soldering machines, cooking ovens. This product has current monitoring and alarms up to 50A built with current transformer.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 45 °C | |
| Degree of protection (IP) | IP20 | |
| min. operating temperature | 0 °C | |
| Colour | blue/black | |
| Voltage | 24 VA | |
| Version | temperature controller |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85371091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
