BSX46-16 | CDIL

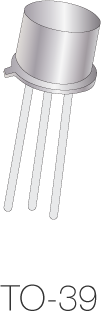

Bipolar junction transistor, NPN, 1 A, 60 V, THT, TO-39, BSX46-16
Order No.: 18S3953
EAN: 4099879029126
MPN:
BSX46-16
Unit Price (€ / pc.)
1.1067 € *
Available: 499 pcs.
Total Price:
11.07 € *
Price list
Quantity
Price per unit*
10 pcs.
1.1067 €
50 pcs.
0.9758 €
500 pcs.
0.7735 €
1000 pcs.
0.7259 €
2000 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BSX46-16, CDIL
This NPN silicon planar transistor is designed for use as an amplifier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 200 °C | |
| min. operating temperature | -65 °C | |
| Max DC amplification | 250 mA | |
| Power dissipation | 1 W | |
| Version | NPN | |
| max.voltage between collector and emitter Vceo | 60 V | |
| Rated current | 1 A | |
| Assembly | THT | |
| Saturation voltage | 1 V | |
| Enclosure | TO-39 | |
| Collector current | 1 A | |
| Transit frequency fTmin | 50 MHz | |
| Min DC gain | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
