BC490 | CDIL

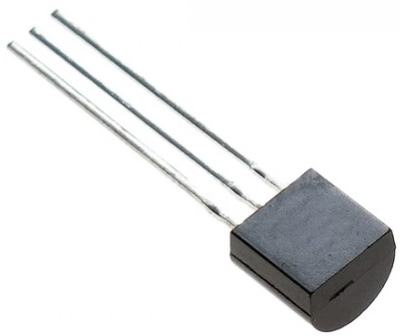

Bipolar junction transistor, PNP, 1 A, 80 V, THT, TO-92, BC490
Order No.: 12S4600
EAN: 4099879026828
MPN:
BC490
Unit Price (€ / pc.)
0.3201 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3201 €
10 pcs.
0.2832 €
100 pcs.
0.2225 €
500 pcs.
0.1821 €
1000 pcs.
0.1607 €
2500 pcs.
0.1464 €
*incl. VAT plus shipping costs
**Subject to prior sale
PNP transistor, BC490, CDIL
The BC490 PNP silicon planar epitaxial transistor is designed for use as a high current transistor.
Technical specifications
| Version | PNP | |
| Enclosure | TO-92 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 80 V | |
| max.voltage between collector and emitter Vceo | 80 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated current | 1 A | |
| Saturation voltage | 1.2 V | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 0.625 W | |
| Collector current | 1 A | |
| Max DC amplification | 400 mA | |
| Min DC gain | 60 mA |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85412900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
