BC140-10 | CDIL

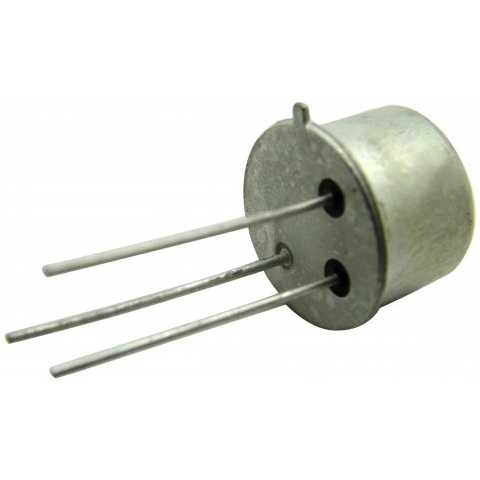

Bipolar junction transistor, NPN, 1 A, 40 V, THT, TO-39, BC140-10
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.595 € *
Next delivery: 297 pcs. on 2026-07-31
General purpose transistor, BC140-10, CDIL
Medium Power Amplifier and Switching Applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-39 | |
| Version | NPN | |
| Collector current | 1 A | |
| max.voltage between collector and emitter Vceo | 40 V | |
| max.voltage between collector and base Vcbo | 80 V | |
| Power dissipation | 4 W | |
| Transit frequency fTmin | 50 MHz | |
| Min DC gain | h(FE) 63 | |
| Max DC amplification | h(FE) 160 | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Original Packaging | Bulk with 300 pieces |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| Electrical equipment take-back |  |
