BC109C | CDIL
Bipolar junction transistor, NPN, 200 mA, 25 V, THT, TO-18, BC109C
Order No.: 11S2700
MPN:
BC109C
EAN: 4099879026453

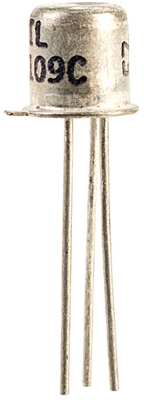

Images may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 281 pcs.
Leadtime: 3 Weeks **
Total Price:
9.64 € *
Quantity
Price per unit*
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Transistors series BC.
Technical attributes (type, package, manufacturer): BC109C, TO18
Technical specifications
| Version | NPN | |
| Enclosure | TO-18 | |
| max. operating temperature | 200 °C | |
| max.voltage between collector and base Vcbo | 30 V | |
| max.voltage between collector and emitter Vceo | 25 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 200 mA | |
| Saturation voltage | 600 mV | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 0.3 W | |
| Collector current | 200 mA | |
| Max DC amplification | 800 mA | |
| Min DC gain | 420 mA |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85412900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
