BC108B | CDIL

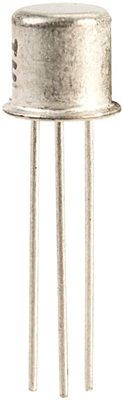

Bipolar junction transistor, NPN, 200 mA, 25 V, THT, TO-18, BC108B
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.0115 € *
Available: 18 pcs.
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
10 pcs.
1.0115 €
50 pcs.
0.8925 €
250 pcs.
0.7735 €
1000 pcs.
0.6783 €
2500 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BC108B, CDIL
This NPN silicon planar transistor is designed for use as low noise audio general purpose audio amplifier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-18 | |
| Version | NPN | |
| Saturation voltage | 600 mV | |
| Collector current | 200 mA | |
| max.voltage between collector and emitter Vceo | 25 V | |
| max.voltage between collector and base Vcbo | 30 V | |
| Power dissipation | 0.3 W | |
| Transit frequency fTmin | 150 MHz | |
| Min DC gain | 200 mA | |
| Max DC amplification | 450 mA | |
| Rated current | 200 mA | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
