BC107B | CDIL

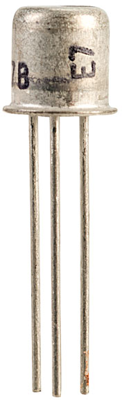

Bipolar junction transistor, NPN, 200 mA, 45 V, THT, TO-18, BC107B
Order No.: 11S2450
EAN: 4099879026415
MPN:
BC107B
Unit Price (€ / pc.)
0.8925 € *
Available: 161 pcs.
Available in 5 Days: 975 pcs. - if ordered today
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8925 €
10 pcs.
0.5593 €
50 pcs.
0.4879 €
250 pcs.
0.4284 €
1000 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, BC107B, CDIL
This NPN silicon planar transistor is designed for use as low noise audio general purpose audio amplifier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-18 | |
| Power dissipation | 0.3 W | |
| Assembly | THT | |
| Version | NPN | |
| Transit frequency fTmin | 150 MHz | |
| max.voltage between collector and emitter Vceo | 45 V | |
| Rated current | 200 mA | |
| Max DC amplification | 450 mA | |
| Collector current | 200 mA | |
| Saturation voltage | 600 mV | |
| max.voltage between collector and base Vcbo | 50 V | |
| Min DC gain | 200 mA | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
