IBS06LF02PCM5 | Carlo Gavazzi

Inductive sensor, PNP, flush mounting, flush, 1 Form B (N/C), 36 V (DC), 200 mA, IBS06LF02PCM5

Order No.: 28G1155
EAN: 5709870404813
MPN:
IBS06LF02PCM5
Series: IBS06
IBS06LF02PCM5 Carlo Gavazzi Proximity Switches, Reed switches
Image may differ
Unit Price (€ / pc.)
82.6931 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
82.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
82.6931 €

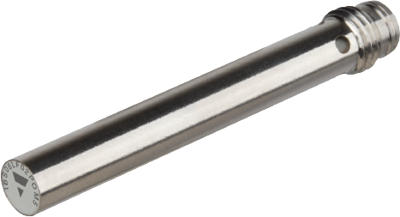

Inductive proximity switch, IBS06LF02PCM5, Carlo Gavazzi

The IBS06LF02PCM5 is a miniaturized inductive proximity switch that represents the optimal solution for industrial automation equipment in applications where space is limited, but long switching distance is needed, including tool-selection and textile machines. The advanced electronics is encapsulated in a robust stainless steel housing.

Features

  • Easy to install
  • High precision
  • Integrated diagnostic function with flashing LED in the event of a short circuit or overload

Applications

  • Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications
  • Particularly suitable for rotational speed monitoring thanks to the high operating frequency
Technical specifications
Detecting distance 2 mm
Degree of protection (IP) IP67
Assembly flush mounting, flush
diameter 6.5 mm
switching current 200 mA
Length 55 mm
Product type inductive sensor
Version PNP
Switching Voltage (DC) 36 V
Connection M8-connector
Latching switching function 1 Form B (N/C)
Logistics
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
