CD50CNF06NO | Carlo Gavazzi
Capacitive sensor, NPN, flush mounting, flush, 1 Form B (N/C), 30 V (DC), 50 mA, CD50CNF06NO
Unit Price (€ / pc.)
65.6642 € *
Standard delivery time from the manufacturer is: On Request

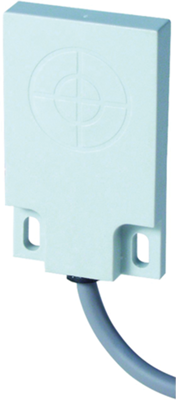

Capacitive level detector, CD50CNF06NO, Carlo Gavazzi
Capacitive level detector 3-wire DC sensor with open collector transistor output. The sensing distance is fixed and works through a nonmetallic wall of up to 20 mm of thickness.
Features
- Basic capacitive water level sensor
- For water storage tanks in mini-pools and whirlpools
- Detection of excess water in the whirlpool tub
- Safety device to control the operation of the pump
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cable, PVC 3x0.25 mm², 2 m | |
| Detecting distance | 6 mm | |
| Latching switching function | 1 Form B (N/C) | |
| Switching Voltage (DC) | 30 V | |
| Degree of protection (IP) | IP67 | |
| Length | 50 mm | |
| Assembly | flush mounting, flush | |
| switching current | 50 mA | |
| Version | NPN | |
| Product type | capacitive sensor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
