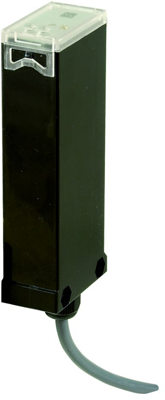

PD112CNB25BP | Carlo Gavazzi
Diffuse mode sensor, 2.5 m, NPN or PNP, 10-30 VDC, cable connection, IP67, PD112CNB25BP
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
196.1953 € *
Standard delivery time from the manufacturer is: On Request
Photoelectric sensor, PA18CAT20, GAVAZZI
The PA18CAT20 is a sensor that comes in a 112 x 45 x 25 mm strong polycarbonate (PC) housing. The sensor is useful in applications where long range and high accuracy detection is required. Robust housing, a sophisticated mechanical design and high power LED for excellent performance in harsh environments. The sensor has a test input, for door mode, designed to remotely disable (mute) the emitter and thereby evaluate the sensor function from a door controller or e.g. a PLC. The output type is preset (NPN and PNP) with selectable switching function NO/ NC. 2 selectable modes are built in: ”Industrial” for general automation and ”Door” specifically for control of doors & gates.
Features
- LED indication for output and power ON
- Excellent EMC performance
- Remote test feature (mute)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | diffuse mode sensor | |
| Detecting distance | 2.5 m | |
| Output | NPN or PNP | |
| Connection | cable connection | |
| Voltage | 10-30 VDC | |
| Activation time | 2 ms | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | LT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
