PA18CRD08PASA | Carlo Gavazzi

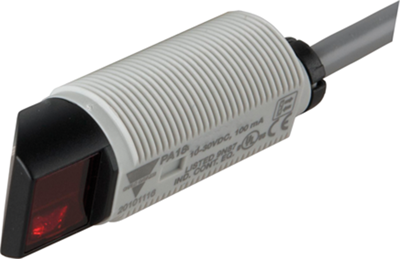

Diffuse mode sensor, 0.8 m, PNP, 10-30 VDC, cable connection, IP67, PA18CRD08PASA
Diffuse-reflective sensors, type Gavazzi PA 18 CRD 08 PASA.
With polarity reversal/ short-circuit/ surge protection. LED function indication; Sensing range: 800 mm. Output: PNP. Operating voltage: 10 to 30 VDC. Voltage drop: 2.0 VDC. No-load current: max. 20 mA at 24 VDC. Output current: max. 100 mA. Insulation voltage: 500 VAC. ON delay: max. 300 ms. Termination: 2.0 m cable. 4 x 0.25 mm². Light source: LED 625 nm, modulated infrared light. Degree of protection: IP 67. Housing: ABS. Certifications: cULus, CE. Operating temperatures: –25 to +60 °C. Housing dimensions: M18 x 49.6 mm.
Type: PA 18 CRD 08 PASA, diffuse-reflective sensor
Connection | cable connection | |
Activation time | 1 ms | |
Version | diffuse mode sensor | |
Output | PNP | |
Detecting distance | 0.8 m | |
Switching logic | light ON/dark ON | |
Degree of protection (IP) | IP67 | |
Voltage | 10-30 VDC |
Country of origin | LT |
Customs tariff number | 85365080 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
