ESB101.LED.230VAC | CAMTEC
Inrush current limiter, 16 A, 220-240 VAC, ESB101.LED.230VAC
Unit Price (€ / pc.)
79.8609 € *
Available: 5 pcs.
Next delivery: 15 pcs. on 2025-12-23
Total Price:
79.86 € *
Price list
Quantity
Price per unit*
1 pcs.
79.8609 €
5 pcs.
75.0652 €
15 pcs.
72.1854 €
50 pcs.
68.9843 €
150 pcs.
66.1164 €
*incl. VAT plus shipping costs
Subject to prior sale

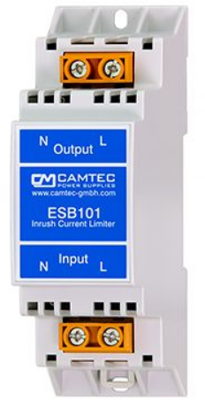

Inrush current limiter, ESB101.LED.230VAC(R2), CAMTEC
The ESB101.LED.230VAC(R2) offers effective and interference free operation with capacitive loads. It is simple to integrate into existing equipment. This product is self-powering and does not require an external power supply.
Features
- Peak- / R.M.S. inrush current limiter
- DIN-Rail TS35mm
- Wall mount (universal case)
- Spring-type terminals 0.5-6 mm² / 21-10 AWG
- Integrated bypass relay
- Integrated thermal protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | inrush current limiter | |
| Rated current | 16 A | |
| Voltage | 220-240 VAC | |
| Connection | spring terminals | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 90328900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
