HSEUIREG10001.090 | CAMTEC

Power supply, programmable, 0 to 90 VDC, 14 A (0 to 14 A), 1008 W, HSEUIREG10001.090

Order No.: 25K8685
EAN: 4099891754624
MPN:
HSEUIREG10001.090
3041085004CA
Series: HSEUiREG
CAMTEC

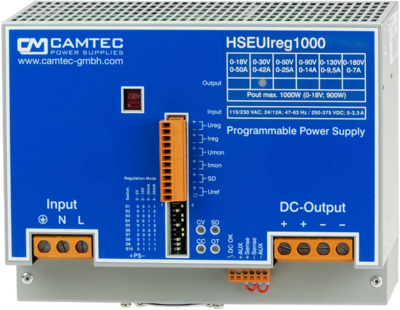

HSEUIREG10001.090 CAMTEC DIN Rail Power Supplies
Image may differ
Print
Key Specification:
Number of outputs 1
Output current 14 A
Range of Output Currence 0 to 14 A
Output voltage DC 0 to 90 VDC
Input voltage AC 90-132 VAC, 184-264 VAC, 250-375 VDC

Ordering Information:

not to be sold to private customers
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1,309.4165 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1,309.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,309.4165 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Lab power supply DIN-Rail, HSEUIREG10001.090, CAMTEC

1000 W Lab power supply DIN-Rai.

Features

  • Real time voltage programming
  • Real time and value C/V-monitoring
  • Remote shutdown
  • Sense control 2V per load line
  • Power good relay DC-ok
  • Quick down programming option PS
  • Precise dynamics on load change
  • Controlled fan
Technical specifications
Version programmable
Number of outputs 1
Output current 14 A
Range of Output Currence 0 to 14 A
Output voltage DC 0 to 90 VDC
Input voltage AC 90-132 VAC, 184-264 VAC, 250-375 VDC
Power 1008 W
efficiency 90 %
Degree of protection (IP) IP20
Width 200 mm
Height 156 mm
Depth 115 mm
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
