HPV10001.150 | CAMTEC

Power supply, 150 VDC (132 to 180 VDC), 6.7 A (3.4 to 7 A), 1008 W, HPV10001.150

Order No.: 25K8681
EAN: 04262552171348
MPN:
HPV10001.150
3041076003CA
Series: HPV
CAMTEC

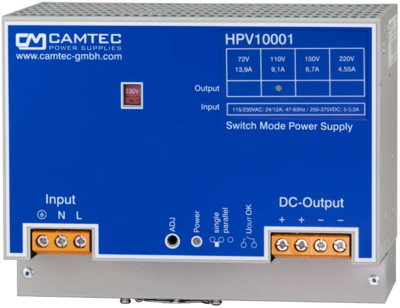

HPV10001.150 CAMTEC DIN Rail Power Supplies
Image may differ
Print
Key Specification:
Number of outputs 1
Output current 6.7 A
Range of Output Currence 3.4 to 7 A
Output voltage DC 150 VDC (132 to 180 VDC)

Ordering Information:

not to be sold to private customers
Show variants: 4
Download Datasheet Technical specifications
Unit Price (€ / pc.)
713.2027 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
713.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
713.2027 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Lab power supply DIN-Rail, HPV10001.150, CAMTEC

1000 W Lab power supply DIN-Rai.

Features

  • Real time voltage programming
  • Real time and value C/V-monitoring
  • Remote shutdown
  • Sense control 2V per load line
  • Power good relay DC-ok
  • Quick down programming option PS
  • Precise dynamics on load change
  • Controlled fan
Technical specifications
Output voltage DC 150 VDC (132 to 180 VDC)
Depth 115 mm
Number of outputs 1
Degree of protection (IP) IP20
efficiency 93 %
Power 1008 W
Input voltage AC 90-132 VAC, 184-264 VAC, 250-375 VDC
Range of Output Currence 3.4 to 7 A
Width 200 mm
Height 156 mm
Output current 6.7 A
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
