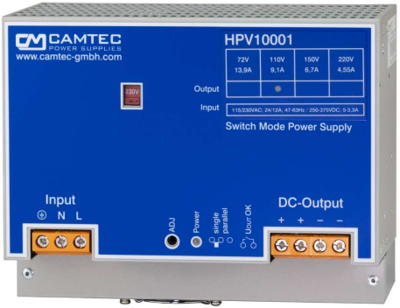

HPV10001.072 | CAMTEC
Power supply, 72 VDC (58 to 86 VDC), 13.9 A, 1000 W, HPV10001.072
Order No.: 25K1271
EAN: 04262552171324
MPN:
HPV10001.072
3041076001CA
This item is no longer available.
As an alternative, we recommend the following item:
Power supply, 72 VDC (58 to 86 VDC), 13.9 A, 1008 W, HPV10001.072
Order No.: 25K8680
Manufacturer: CAMTEC
per pc. 653.31 € *
Power supplies, type Camtec HPV.
Single-phase AC/DC power supply for rail mounting, V/I characteristic; Input voltage: 115/230 V. Input range AC: 90 to 132 V/184 to 265 V. Input range DC: 250 to 375 V. Backup time (230 VAC): 50 ms. Operating temperatures: –20 to +70 °C.
Output power 1000 W, type HPV10001.
Dimensions: 200 x 156 x 118.5 mm. Weight: 3.0 kg.
Technical attributes (type, output voltage, output current, residual ripple, efficiency): HPV10001.72T, 72 VDC, 13.9 A, 200 mV, 93 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 13.9 A | |
| Output voltage DC | 72 VDC (58 to 86 VDC) | |
| Input voltage AC | 90-132 VAC, 184-264 VAC, 250-375 VDC | |
| Power | 1000 W | |
| efficiency | 93 % | |
| Degree of protection (IP) | IP20 | |
| Width | 200 mm | |
| Height | 156 mm | |
| Depth | 118.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
