CPS-EC1500.110 | CAMTEC
Power supply, 110 VDC (110 to 173 VDC), 13.6 A (6.8 to 13.6 A), 1500 W, CPS-EC1500.110
Unit Price (€ / pc.)
1,056.839 € *
Standard delivery time from the manufacturer is: 6 Weeks

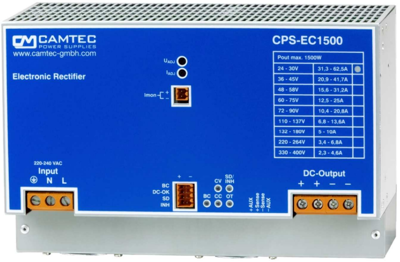

Precision DC Rectifier, CPS-EC1500.110, CAMTEC
The CPS-EC1500.110 is a high precision switch mode power supply for an upscale demand. The unit is C/V adjustable. The designed meets challenging applications like railway, complex drives, battery charging for DC-UPS, test-stands, machine-building and professional LED lighting. The power supply provides a low ripple-noise, a precise load-regulation and high efficiency up to 94%. High-end long-life capacitors guarantee an extended hold-up-time and an extraordinary lifetime of the power supply. The circuit design starts complex loads easily. The internal control circuit manages illegal operating conditions to prevent your system from damages.
Features
- Real time output current monitoring
- Sense control 2V per load line
- Inhibit function
- External shutdown
- Boost charge mode
- Precise dynamic response to load change
- Designed for long life under full stress
- Strong input filters
- High reliability, shock and vibration proof
- Overload and short circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 186-254 VAC, 250-375 VDC | |
| Height | 156 mm | |
| Degree of protection (IP) | IP20 | |
| Output voltage DC | 110 VDC (110 to 173 VDC) | |
| Range of Output Currence | 6.8 to 13.6 A | |
| efficiency | 94 % | |
| Power | 1500 W | |
| Output current | 13.6 A | |
| Depth | 115 mm | |
| Number of outputs | 1 | |
| Width | 250 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
