USF340-50.0K-0.1%-5PPM | Caddock
Thick film resistor, 50 kΩ, 0.333 W, ±0.1 %, USF340-50.0K-0.1%-5PPM
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.3054 € *
Standard delivery time from the manufacturer is: On Request

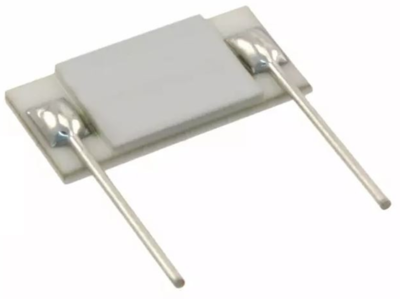

TC film resistor, USF340-50.0K-0.1%-5PPM, Caddock
The USF340-50.0K-0.1%-5PPM is a usf ultra-stable low TC ultra-precision film resistor developed to meet the requirements for increasing performance for resistors in high performance analog electronics. This resistor provides the lowest TC with the widest resistance range and the highest voltage ratings.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 50 kΩ | |
| Tolerance | ±0.1 % | |
| Power | 0.333 W | |
| Design | radial | |
| Assembly | THT | |
| Version | thick film resistor | |
| Temperature coefficient | ±5 ppm/K | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Length | 19.05 mm | |
| Width | 1.91 mm | |
| Height | 10.04 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | US |
| Original Packaging | Bulk with 50 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
