MP915-5.00-1% | Caddock

Power metal film resistor, 5 Ω, 15 W, ±1 %, MP915-5.00-1%

Order No.: 60E710
EAN: 4099879697066
MPN:
MP915-5.00-1%
Series: MP915
MP915-5.00-1% Caddock Wirewound Resistors Image 1
MP915-5.00-1% Caddock Wirewound Resistors Image 2
MP915-5.00-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
4.0341 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
201.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
4.0341 €

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 15 W, type MP 915.

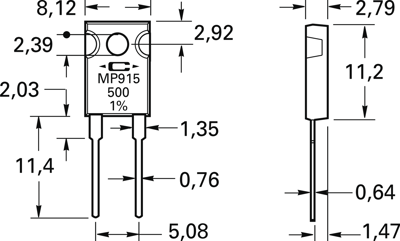

Technical specifications
Filter Property Value
Design radial
Length 8.12 mm
min. operating temperature -55 °C
ohmic resistance 5 Ω
Height 11.18 mm
Assembly THT
Version power metal film resistor
Temperature coefficient -20/80 ppm/K
max. operating temperature 150 °C
Tolerance ±1 %
Width 2.79 mm
Power 15 W
Logistics
Property Value
Country of origin US
Original Packaging Bar with 50 pieces
Customs tariff number 85332100
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
