MP915-1.00-1% | Caddock
Power metal film resistor, 1 Ω, 15 W, ±1 %, MP915-1.00-1%
Unit Price (€ / pc.)
6.4974 € *
Available: 44 pcs.
Total Price:
6.50 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4974 €
10 pcs.
5.7239 €
100 pcs.
5.0218 €
200 pcs.
4.8195 €
1000 pcs.
4.4387 €
*incl. VAT plus shipping costs
Subject to prior sale

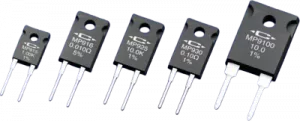

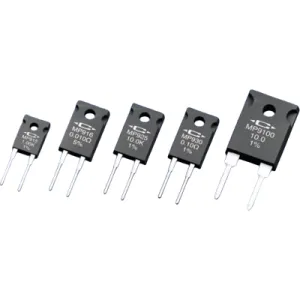

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.
Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface
Rated load 15 W, type MP 915.

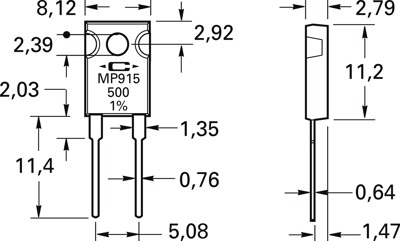

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | -20/80 ppm/K | |
| Tolerance | ±1 % | |
| Design | radial | |
| ohmic resistance | 1 Ω | |
| Power | 15 W | |
| Width | 2.79 mm | |
| Height | 11.18 mm | |
| Assembly | THT | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | power metal film resistor | |
| Length | 8.12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | US |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
