MP915-0.10-1% | Caddock

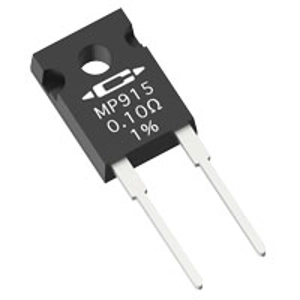

Power metal film resistor, 100 mΩ, 15 W, ±1 %, MP915-0.10-1%

Order No.: 60E702
EAN: 4099879697011
MPN:
MP915-0.10-1%
Series: MP915
MP915-0.10-1% Caddock Wirewound Resistors Image 1
MP915-0.10-1% Caddock Wirewound Resistors Image 2
MP915-0.10-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
6.9020 € *
Available: 102 pcs.
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9020 €
10 pcs.
6.0690 €
100 pcs.
5.3193 €
200 pcs.
5.1170 €
1000 pcs.
4.7005 €
*incl. VAT plus shipping costs
Subject to prior sale

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 15 W, type MP 915.

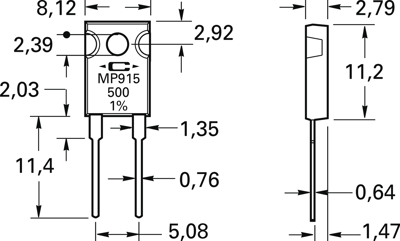

Technical specifications
Design radial
Length 8.12 mm
min. operating temperature -55 °C
ohmic resistance 100 mΩ
Height 11.18 mm
Assembly THT
Version power metal film resistor
Temperature coefficient 0/+200 ppm/K
max. operating temperature 150 °C
Tolerance ±1 %
Width 2.79 mm
Power 15 W
Logistics
Country of origin US
Original Packaging Bar with 50 pieces
Customs tariff number 85332100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
