MP2060-0.010-2% | Caddock

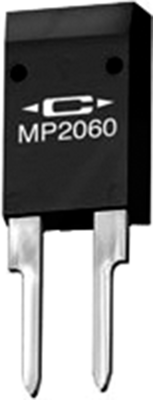

Power metal film resistor, 10 mΩ, 36 W, ±1 %, MP2060-0.010-2%
Order No.: 60E781
EAN: 4099879697318
MPN:
MP2060-0.010-2%
Unit Price (€ / pc.)
10.0436 € *
Standard delivery time from the manufacturer is: 2 Weeks
Power metal film resistors, 60 W, type Caddock MP2060 Kool-Pak.
For clip mounting, low inductance, for high-speed circuits and RF applications, insulated package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 mΩ | |
| Width | 4.45 mm | |
| Tolerance | ±1 % | |
| Temperature coefficient | 0/+300 ppm/K | |
| max. operating temperature | 150 °C | |
| Power | 36 W | |
| min. operating temperature | -55 °C | |
| Version | power metal film resistor | |
| Assembly | THT | |
| Design | radial | |
| Height | 16.52 mm | |
| Length | 10.41 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Country of origin | US |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
