TF320CFP0040Y | C & K

Snap acting switche, On-On, plug-in connection, pin plunger, 1.86 N, 20 A/250 VAC, TF320CFP0040Y

Order No.: 12G1960
EAN: 4099889210903
MPN:
TF320CFP0040Y
Series: TF3

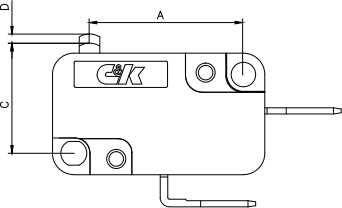

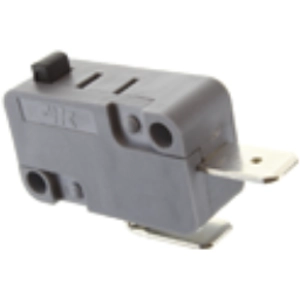

TF320CFP0040Y C & K Snap Action Switches Image 1
TF320CFP0040Y C & K Snap Action Switches Image 2
Image may differ
Unit Price (€ / pc.)
8.4847 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 13 Weeks **
Total Price:
2,121.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
8.4847 €

Snap-acting switch, TF320CFP0040Y, C&K

Mid size snap-acting switch is the new extension of snap switch. With the larger disconnection gap, it is suitable for high power amperage application while providing necessary safety.

Features

  • Extreme operating temperature up to 125ºC
  • Rating up to 25 AMPS
  • Broad range of operating forces
  • Quick connect terminations
Technical specifications
Actuator pin plunger
Breaking capacity 20 A/250 VAC
Switching point 14.4 mm ±0.5 mm
Design straight
Shell Material PBT
Connection plug-in connection
Latching switching function On-On
actuating force 1.86 N
Logistics
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
