T3887 | C.K Tools

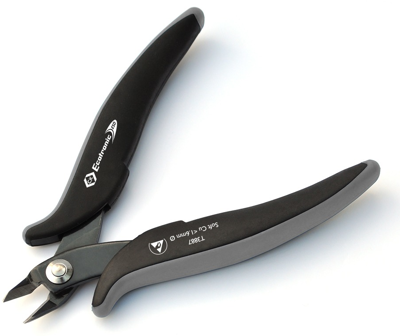

ESD side cutter, 136 mm, 83 g, cut capacity (1.6 mm/–/–/–), T3887
Order No.: 05L6596
EAN: 5013969938876
MPN:
T3887
ECOTRONIC
Unit Price (€ / pc.)
14.4228 € *
Available in 14 Days: 30 pcs. - if ordered today
Precision side cutters for fine cutting applications
Suitable for cutting soft copper wires of up to 1.6mmØ / 14AWG
Sharp, precision ground cutting edges with a full flush cut
Special tool steel blade, hardened for long-term cutting performance
Elecro-static discharging handles - dissipative 10⁸
Contoured, dual component handle design for comfortable working
Black oxidised finish for corrosion resistance and reduced glare
Smooth-action return spring for convenience during repetitive work
Joint with durable stainlesss steel rivet
Technical information:
Total length: 136 mm
Blade length: 10 mm
Cutting angle: 21°
Head Height (from joint to tip): 21 mm
Head Width (Widest point): 12 mm
Steel Thickness: 3 mm
Cutting Capacity (Copper only) : 1,6 mm / 14 AWG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cutting edge | without facet | |
| Weight | 83 g | |
| Length | 136 mm | |
| Cutting capacity (soft) | 1.6 mm | |
| 1000V Insulated | No | |
| ESD protection | Yes | |
| Material | special steel | |
| Version | side cutter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
