T3778DF | C.K Tools

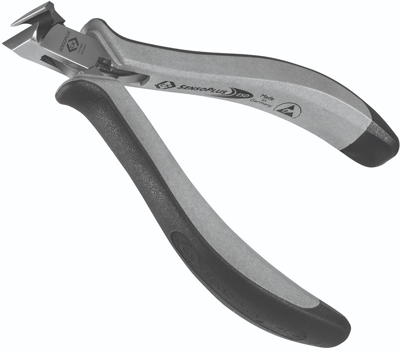

ESD oblique cutter, 120 mm, 87 g, cut capacity (1.6/1/0.3 mm/–), T3778DF
Unit Price (€ / pc.)
56.0252 € *
Available: 1 pcs.
Available in 14 Days: 30 pcs. - if ordered today
- Special alloy steel, drop forged, hardened & tempered for exceptional strength & durability
- Precision box joint construction for permanent, adjustment free jaw alignment
- Induction hardened jaws for outstanding long term performance
- Mirror polished surface eliminates the risk of damage from flaking chrome
- Spot welded double leaf springs for consistent, repetitive action
- Ergonomically designed dual component handles for increased comfort & control
- Fully ESD compliant for safe use on sensitive electronic components
- According to IEC 61340 5.1 & 5.2
- Wide head, long jaws
- Bevel: Full Flush Cut
- Length of cutting edges: 18 mm
- Overall length: 120 mm
- Cutting capacities wire: Hard: 0,3 mm / Medium Hard: 1,0 mm / Soft: 1,6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cutting edge | with facet | |
| 1000V Insulated | No | |
| Cutting capacity (medium-hard) | 1 mm | |
| Version | oblique cutter | |
| Material | special steel | |
| ESD protection | Yes | |
| Weight | 87 g | |
| Cutting capacity (soft) | 1.6 mm | |
| Length | 120 mm | |
| Cutting capicity (hard) | 0.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
