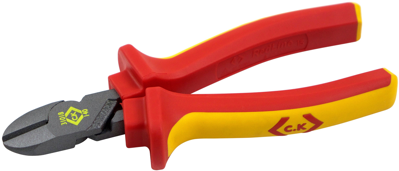

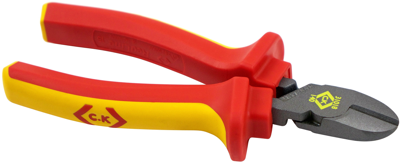

431018 | C.K Tools
VDE side cutter, 140 mm, 158 g, cut capacity (4/1.9/1.4 mm/–), 431018
Order No.: 03L3381
EAN: 5051074310187
MPN:
431018
This item is no longer available.
As an alternative, we recommend the following item:
VDE side cutter, 157 mm, 180 g, cut capacity (4/1.9/1.4 mm/–), T39075A 140-RND
Order No.: 08L0148
Manufacturer: C.K Tools
per pc. 64.1529 € *
- Two component, ergonomic design, with anti-slip horns for increased comfort, control & safety
- Induction hardened jaws for outstanding long term performance
- Cutting jaws with C.K optimised geometry for unsurpassed cutting performance
- Special alloy steel, drop forged, hardened & tempered for exceptional strength & durability
- VDE approved - individually tested to 10,000V for safe live working up to 1,000V
- Conforms to IEC 60900:2004 , VDE0682/201 , ISO 5749
- Cutting capacities: Hard: 1,4 mm / Medium hard: 1,9 mm / Soft: >4,0 mm
- Total length: 140 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 158 g | |
| Length | 140 mm | |
| Cutting capacity (medium-hard) | 1.9 mm | |
| Cutting capacity (soft) | 4 mm | |
| 1000V Insulated | Yes | |
| ESD protection | No | |
| Cutting capicity (hard) | 1.4 mm | |
| Material | special steel | |
| Version | side cutter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
