T4847 0 | C.K Tools

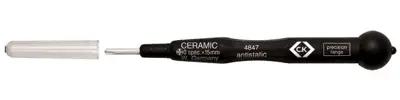

ESD ceramic trimmer, PH0, Phillips, BL 15 mm, L 100 mm, T4847 0
Order No.: 03L4321
EAN: 5013969325805
MPN:
T4847 0
Unit Price (€ / pc.)
25.7159 € *
Available in 14 Days: 30 pcs. - if ordered today
Total Price:
25.72 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7159 €
5 pcs.
23.1455 €
10 pcs.
20.8369 €
*incl. VAT plus shipping costs
Subject to prior sale

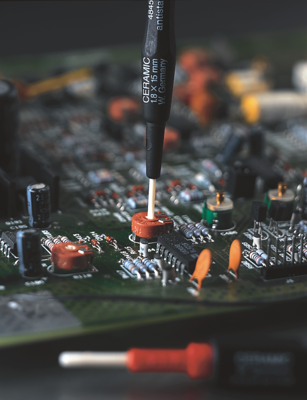

- Zirconia ceramic tips - safe trimming of highly sensitive electrical components
- No electromagnetic induction
- No eddy current loss in HF (high frequency)
- 100 % electric insulation
- 100 % non-magnetic
- 100 % non-static
- Unequalled resistance to wear – 10 x better than metal / 100 x better than plastic
- Total heat resistance of blades up to 1000°C
- Extremely low thermal conductivity
- 100 % rustproof
- Highly resistant to all strong acids ( other than Hydrofluoric)
- Anti-stick surface to prevent solder, soft or silverm to adhere to surfaces
- Contamination free blades make them suitable for clean-rooms
- Size: PH 0 special
- Blade diameter: 2,6 mm
- Visible blade length: 15 mm
- Overall length: 100 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ceramic trimmer | |
| Length | 100 mm | |
| Blade length | 15 mm | |
| ESD protection | Yes | |
| 1000V Insulated | No | |
| Peak type | Phillips | |
| Size | PH0 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82054000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
