BYB-4-18H0100 | by.B
Insulated twin wire end ferrule, 10 mm², 26 mm/14 mm long, DIN 46228-4, red, BYB-4-18H0100
Order No.: 18H0100
EAN: 4099891988586
MPN:
BYB-4-18H0100
Unit Price (€ / pc.)
0.2416 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2416 €
50 pcs.
0.2118 €
100 pcs.
0.1892 €
500 pcs.
0.1666 €
1000 pcs.
0.1440 €
*incl. VAT plus shipping costs
Subject to prior sale

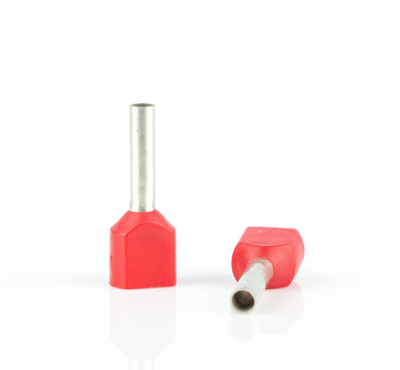

Twin wire end ferrule, BYB-4-18H0100, by.B
Insulated twin wire end ferrule, 2 x 10 mm², 26 mm long, according to DIN 46228/4, red.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 10 mm² | |
| Isolated | Yes | |
| Colour | red | |
| Length | 26 mm | |
| Pin lenght | 14 mm | |
| Standard number | DIN 46228-4 | |
| Contact material | copper, tin-plated | |
| Material Insulation | polypropylene | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
