BYB-3-17H260 | by.B

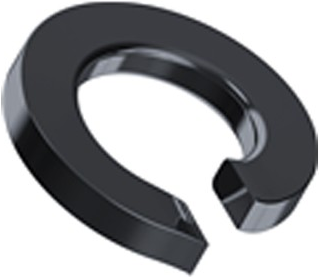

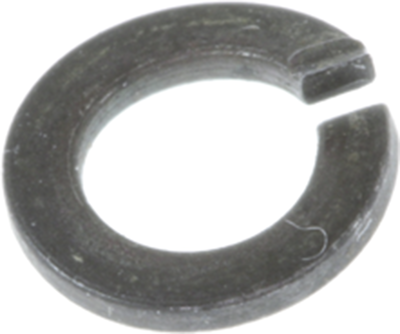

Spring washer, M6, H 1.6 mm, inner Ø 6.1 mm, outer Ø 11.8 mm, spring steel, according to DIN 127 A, BYB-3-17H260
Order No.: 17H260
EAN: 4099889503494
MPN:
BYB-3-17H260
Unit Price (€ / pc.)
0.0345 € *
Available: 127 pcs.
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0345 €
100 pcs.
0.0298 €
1000 pcs.
0.0262 €
5000 pcs.
0.0226 €
10000 pcs.
0.0190 €
*incl. VAT plus shipping costs
Subject to prior sale
Spring lock washers made of spring steel according to DIN 127 A, type BS 5700.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | spring washers | |
| Thread size | M6 | |
| Height | 1.6 mm | |
| Inner diameter | 6.1 mm | |
| Outer diameter | 11.8 mm | |
| Material | spring steel | |
| Standard number | according to DIN 127 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1,000 pieces |
| Customs tariff number | 73182100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
