BYB-3-16H9879 | by.B
Push-in nut, M4, W 8 mm, H 4.7 mm, outer Ø 9.4 mm, PA, BYB-3-16H9879
Order No.: 16H9879
EAN: 4099891966713
MPN:
BYB-3-16H9879
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3570 €
100 pcs.
0.3213 €
500 pcs.
0.2856 €
1000 pcs.
0.2499 €
*incl. VAT plus shipping costs
Subject to prior sale

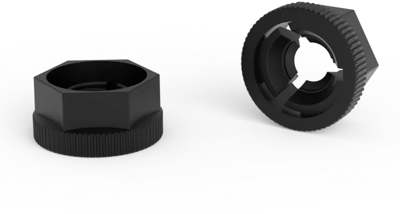

Plug-in nut, BYB-3-16H9879, by.B

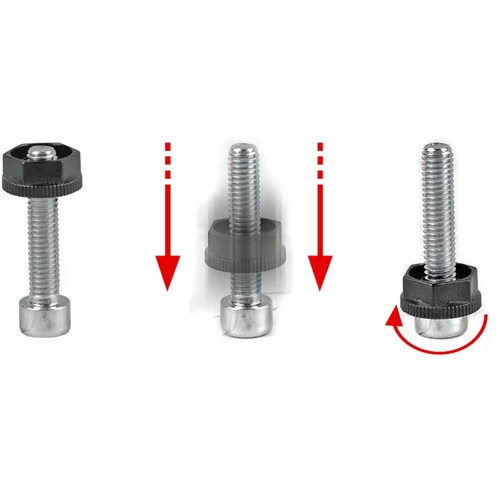

Plug-in nut for an efficient batch production and assembling. The nut is put on a thread bolt and then turned approx. 360° to be screwed in tight.

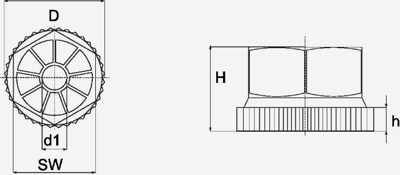

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | push-in nut | |
| Spindle drive type | external hexagon | |
| Thread size | M4 | |
| Height | 4.7 mm | |
| spanner size | 8 mm | |
| Outer diameter | 9.4 mm | |
| Material | PA | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
