BYB-5-94F895 | by.B

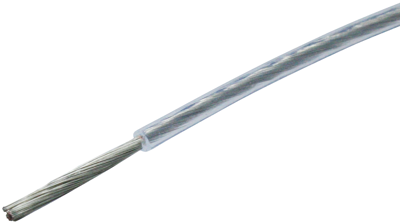

FEP-stranded wire, high flexible, 0.75 mm², 196 x 0.07 mm, transparent, outer Ø 1.8 mm, BYB-5-94F895

Order No.: 94F895
EAN: 4099891187330
MPN:
BYB-5-94F895
FEP 0,75/1,8 TRANSPARENT
BYB-5-94F895 by.B Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
1.7969 € *
Available: 0 mtr.
Leadtime: 4 Weeks **
Total Price:
1,796.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 mtr.
1.7969 €

Flexible stranded wire with Teflon insulation, type FEP.

For test leads, etc. Acid resistant and notch tough

Cross-section 0.75 mm², outer diameter 1.8 mm,.

Technical specifications
Rated voltage 1 kV
Core insulation material FEP
Conductor category CL.5 = fine stranded
Cable cross-section 0.75 mm²
Outer diameter 1.8 mm
Cable structure 196 x 0.07 mm
Temperature range (active) -90 °C to 205 °C
Colour transparent
Cable material copper, tin-plated
Test voltage 3 kV
Logistics
Country of origin DE
Original Packaging Ring with 100 meters
Customs tariff number 85444995
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
