BYB-5-92F330 | by.B

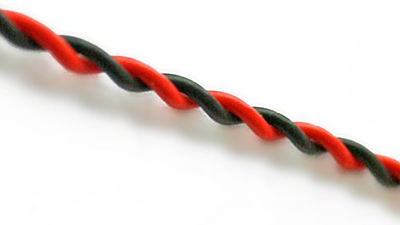

PVC-switching strand, twisted, 2-LiY, 0.25 mm², 14 x 0.15 mm, red/black, outer Ø 2.7 mm, BYB-5-92F330
Switching strand LI-YY 2x0,25 mm², twisted, red and black
Conductor: stranded copper wire 14 x 0.15
Conductor diameter: 0,65mm Ø
conductor nominal cross section: 0,25mm²
Insulation: PVC 80°C,Shore 94+/-3,oil resistant, according to VDE 0207 part 4 type YI 4 and CEE 13, type I 2
Density: 1,30 g,cm³
Elongation at break: 270% (only the insulating sheath)
core diameter: 1,35 mm +/- 0,03 mm Ø
Color sequence of the cores: red and black
stranding: cores stranded in layers
lay length: 10 mm +/- 0,10 mm
Direction of lay: Z, without reverse rotation
Lubricant: talcum
Diameter over stranding: 2,70 mm, +/- 0,06 mm Ø
Operating voltage: 230 V
Test voltage: 800 V
Conductor resistance at RT: 69.97 Ω/km to 72.89 Ω/km (Permissible up to 79.00 Ω/km)
Insulation resistance at RT: 14.88 x 1013 Ω x km
| Filter | Property | Value |
|---|---|---|
| Colour | red/black | |
| Core insulation material | PVC | |
| Cable structure | 14 x 0.15 mm | |
| Rated voltage | 230 V | |
| Cable cross-section | 0.25 mm² | |
| Outer diameter | 2.7 mm | |
| Version | twisted | |
| Test voltage | 800 V | |
| Product type | switching strand | |
| Standard number | VDE 0207-4 | |
| Cable material | copper, tin-plated |
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
