BYB-5-98F675 | by.B
Fibre optic cable, fibers: 2, PE, black, BYB-5-98F675
NCNR (non cancelable / non returnable)

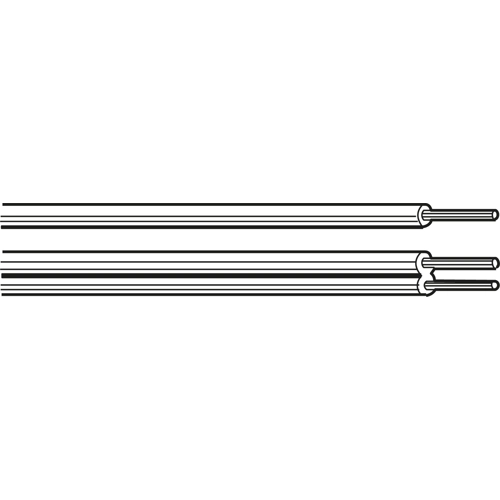

Plastic-Fiber Duplex Fiber-Optic Cable
For light mechanical stress and direct connector termination. Halogen-free, resistant to oil, gasoline, acids, and alkalis. Multimode fibers of category A4a.2 per IEC 60793-2-40 and IEC 60794-2-41.
Construction description:
Fiber: 980/1000 μm plastic optical fiber made of PMMA with fluoropolymer cladding
Conductor: PE conductor sheath, black (one conductor marked on duplex cables)
Transmission characteristics:
Attenuation at 650 nm (laser): < 160 dB/km / at 660 nm (LED): < 230 dB/km
Bandwidth-length product at 650 nm with RML: < 40 MHz x 100 m
Numerical aperture: 0.485 (± 0.045)
Mechanical and thermal properties:
Bending radius: min. 25 mm
Max. tensile force: 160 N (short-term), 10 N (continuous)
Transverse compressive strength: max. 300 N/dm (short-term), max. 40 N/dm (continuous)
Repeated bending: 10,000 cycles
Temperature range: -5°C to +50°C (installation), -55°C to +85°C (operation)
| Filter | Property | Value |
|---|---|---|
| Number of fibres | 2 | |
| Material | PE | |
| Colour | black | |
| Temperature range (unmoved) | -55 °C to 85 °C | |
| Temperature range (active) | -5 °C to 50 °C |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85447000 |
| Original Packaging | Ring with 100 meters |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
