BYB-5-12H4406 | by.B
Mounting base, PA, light gray, self-adhesive, (L x W x H) 76 x 19 x 13.5 mm, BYB-5-12H4406
Order No.: 12H4406
EAN: 4099891205263
MPN:
BYB-5-12H4406
Unit Price (€ / pc.)
0.714 € *
Available: 63 pcs.

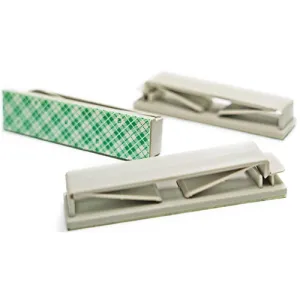

Flat ribbon cable clamps, type SL.
Self-adhesive, free of exhaustion. Made of polyamide, injection molded. Self-extinguishing compliant with UL 94 V-2. With safe and handy snap lock and reliable permanent adhesive with immediate adhesion; Version: heat resistant up to a permanent temperature of +110 °C. With rounded, cable-protective edges and clamping bar. Color: light-gray.

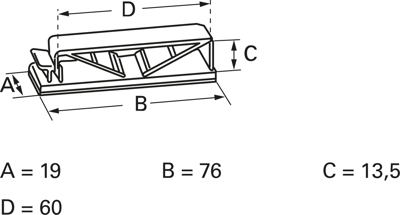

Technical attributes (type, dimensions): SL 60 x 12, A 19, B 76, C 13.5, 60 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Self-adhesive | Yes | |
| Width | 19 mm | |
| Height | 13.5 mm | |
| Material | PA | |
| Product type | mounting base | |
| Length | 76 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
| Original Packaging | Bag with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
