BYB-5-12H4114 | by.B
Clamp, max. bundle Ø 28 mm, PA, light gray, self-adhesive, (L x W x H) 74.5 x 60.5 x 45 mm, BYB-5-12H4114
Order No.: 12H4114
EAN: 4099891205096
MPN:
BYB-5-12H4114
Unit Price (€ / pc.)
7.8897 € *
Available: 301 pcs.
Total Price:
7.89 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8897 €
10 pcs.
7.4137 €
100 pcs.
6.9377 €
1000 pcs.
6.2237 €
5000 pcs.
5.8310 €
*incl. VAT plus shipping costs
Subject to prior sale

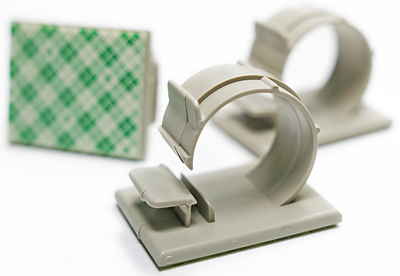

Plastic cable clips, type S.
Fatigue-free design, made of injection-molded polyamide, self-extinguishing, with secure snap closure and permanent adhesive with immediate adhesion, heat-resistant up to +110 °C continuous temperature, with rounded edges that protect cables; color: light gray.

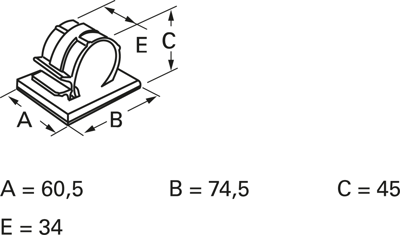

Technical attributes (type, harness diameter (D), dimensions): 1500 S, 38, A 60.5, B 74.5, C 45, E 34 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting clamp | |
| Width | 60.5 mm | |
| Material | PA | |
| max. Bundle diameter | 28 mm | |
| Colour | light gray | |
| Height | 45 mm | |
| Self-adhesive | Yes | |
| Length | 74.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
