BYB-5-12H4112 | by.B
Clamp, max. bundle Ø 28 mm, PA, light gray, self-adhesive, (L x W x H) 56.7 x 50.5 x 35 mm, BYB-5-12H4112
Order No.: 12H4112
EAN: 4099891205089
MPN:
BYB-5-12H4112
Unit Price (€ / pc.)
4.7124 € *
Available: 220 pcs.
Total Price:
4.71 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7124 €
10 pcs.
4.4268 €
100 pcs.
4.1412 €
1000 pcs.
3.7128 €
5000 pcs.
3.4867 €
*incl. VAT plus shipping costs
Subject to prior sale

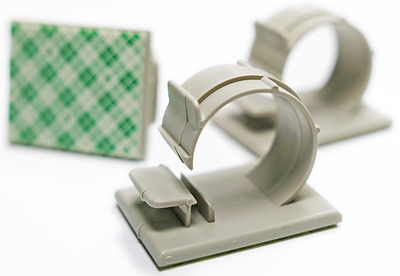

Plastic cable clips, type S.
Fatigue-free design, made of injection-molded polyamide, self-extinguishing, with secure snap closure and permanent adhesive with immediate adhesion, heat-resistant up to +110 °C continuous temperature, with rounded edges that protect cables; color: light gray.

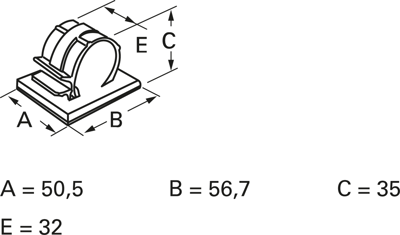

Technical attributes (type, harness diameter (D), dimensions): 1000 S, 28, A 50.5, B 56.7, C 35, E 32 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting clamp | |
| Width | 50.5 mm | |
| Material | PA | |
| max. Bundle diameter | 28 mm | |
| Colour | light gray | |
| Height | 35 mm | |
| Self-adhesive | Yes | |
| Length | 56.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
