BYB-5-12H4106 | by.B
Clamp, max. bundle Ø 13 mm, PA, light gray, self-adhesive, (L x W x H) 25.3 x 30.6 x 18.2 mm, BYB-5-12H4106
Order No.: 12H4106
EAN: 4099891205058
MPN:
BYB-5-12H4106
Unit Price (€ / pc.)
1.0234 € *
Available: 3,072 pcs.
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9639 €
100 pcs.
0.8925 €
1000 pcs.
0.8092 €
5000 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

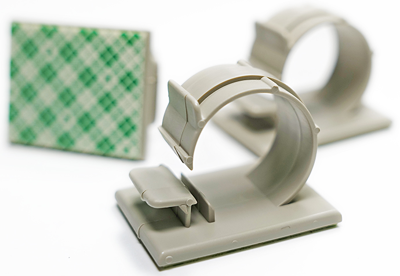

Plastic cable clips, type S.
Fatigue-free design, made of injection-molded polyamide, self-extinguishing, with secure snap closure and permanent adhesive with immediate adhesion, heat-resistant up to +110 °C continuous temperature, with rounded edges that protect cables; color: light gray.

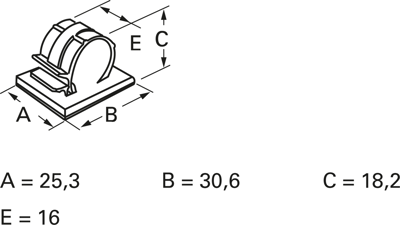

Technical attributes (type, harness diameter (D), dimensions): 500 S, 13, A 25.3, B 30.6, C 18.2, E 16 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting clamp | |
| Width | 30.6 mm | |
| Material | PA | |
| max. Bundle diameter | 13 mm | |
| Colour | light gray | |
| Height | 18.2 mm | |
| Self-adhesive | Yes | |
| Length | 25.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
