BYB-5-12H4104 | by.B
Clamp, max. bundle Ø 9 mm, PA, light gray, self-adhesive, (L x W x H) 25.3 x 25.2 x 13.5 mm, BYB-5-12H4104
Order No.: 12H4104
EAN: 4099891205041
MPN:
BYB-5-12H4104
Unit Price (€ / pc.)
0.7140 € *
Available: 111 pcs.
Next delivery: 1,000 pcs. on 2026-02-12
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6664 €
100 pcs.
0.6307 €
1000 pcs.
0.5593 €
5000 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale

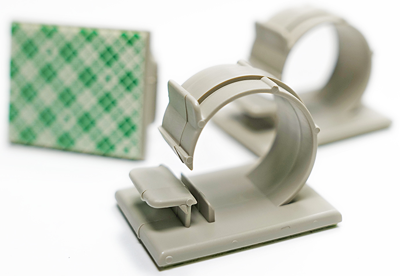

Plastic cable clips, type S.
Fatigue-free design, made of injection-molded polyamide, self-extinguishing, with secure snap closure and permanent adhesive with immediate adhesion, heat-resistant up to +110 °C continuous temperature, with rounded edges that protect cables; color: light gray.

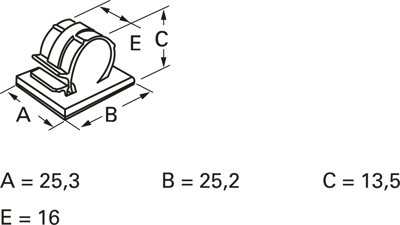

Technical attributes (type, harness diameter (D), dimensions): 375 S, 9.0, A 25.3, B 25.2, C 13.5, E 16 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting clamp | |
| max. Bundle diameter | 9 mm | |
| Length | 25.3 mm | |
| Width | 25.2 mm | |
| Height | 13.5 mm | |
| Self-adhesive | Yes | |
| Material | PA | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
