BYB-5-12H4102 | by.B
Clamp, max. bundle Ø 6.2 mm, PA, light gray, self-adhesive, (L x W x H) 21.7 x 25.3 x 10.5 mm, BYB-5-12H4102
Order No.: 12H4102
EAN: 4099891205034
MPN:
BYB-5-12H4102
Unit Price (€ / pc.)
0.8330 € *
Available: 1,698 pcs.
Next delivery: 1,000 pcs. on 2026-03-26
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7854 €
100 pcs.
0.7378 €
1000 pcs.
0.6545 €
5000 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale

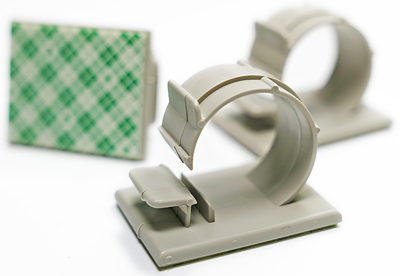

Plastic cable clips, type S.
Fatigue-free design, made of injection-molded polyamide, self-extinguishing, with secure snap closure and permanent adhesive with immediate adhesion, heat-resistant up to +110 °C continuous temperature, with rounded edges that protect cables; color: light gray.

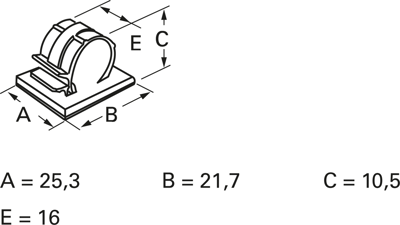

Technical attributes (type, harness diameter (D), dimensions): 250 S, 6.2, A 25.3, B 21.7, C 10.5, E 16 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | mounting clamp | |
| max. Bundle diameter | 6.2 mm | |
| Length | 21.7 mm | |
| Width | 25.3 mm | |
| Height | 10.5 mm | |
| Self-adhesive | Yes | |
| Material | PA | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
