BYB-5-12H0099 | by.B
Cable gland, with bend protection, M12, Clamping range 3 to 6.5 mm, IP68, black, BYB-5-12H0099
Order No.: 12H0099
EAN: 4099891896638
MPN:
BYB-5-12H0099
Unit Price (€ / pc.)
1.0710 € *
Available: 240 pcs.
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9877 €
50 pcs.
0.9163 €
100 pcs.
0.8568 €
500 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, BYB-5-12H0099, by.B

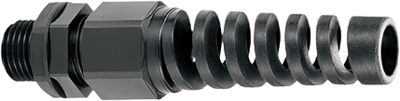

The BYB-5-12H0099 cable gland with strain relief design protects cable from breakage / right angle bending. This product is made from polyamide material in black colour.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with bend protection | |
| max. clamping range | 6.5 mm | |
| Degree of protection (IP) | IP68 | |
| Thread size | M12 | |
| Length | 61.1 mm | |
| Colour | black | |
| Material | PA | |
| Product type | cable gland | |
| min. clamping range | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 50 pieces |
| Customs tariff number | 39269097 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
