80LET | Bussmann

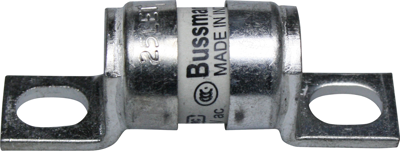

Fuse 17.7 x 26, 2 mm, 80 A, FF, 150 V (DC), 240 V (AC), 80LET
Unit Price (€ / pc.)
22.6338 € *
Available: 3 pcs.
Total Price:
22.63 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6338 €
5 pcs.
21.2772 €
15 pcs.
20.4561 €
50 pcs.
19.5517 €
150 pcs.
18.7425 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid-state fuses, type Bussmann LCT.
To IEC 60269-4, BS 88 part 4 and UL 248-13, super quick-blowing, hole pitch 38 mm
42 mm hole pitch, type LET.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 17.7 mm | |
| Rated voltage (DC) | 150 V | |
| Rated voltage (AC) | 240 V | |
| Length | 56 mm | |
| Height | 19.1 mm | |
| Tripping characteristics | FF | |
| Width | 17.7 mm | |
| Design | 17.7 x 26, 2 mm | |
| Enclosure | ceramic tube | |
| Version | solid-state fuse | |
| Rated current | 80 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85361090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
